Cable Trays

Orchids International cable trays that are generally used for minimal heat generating electrical or telecommunication applications. It is made from best grade HR/CR Steel and Aluminum and in-house surface treatment plants for powder coating and various other coatings.

Print Brochure

  • PERFORATED TYPE CABLE TRAY

    Material :- MS and Pregalvanized
    Finish :- Hot dip Galvanizing/Powder coated/Painted
    Standard Width: 50/100/150/200/300/450/500/600 mm
    Standard Height :- 25/40/50/75/100 mm
    Standard Thickness :- 1.8 mm/2.0mm
    Support :- Threaded Rod Dia 8/10/12 mm
    Angles : 25 x25 / 40 x 40 mm
    Flat Patti
    Cover Ht :- 25mm with 1.6 mm thickness
    ENQUIRE NOW

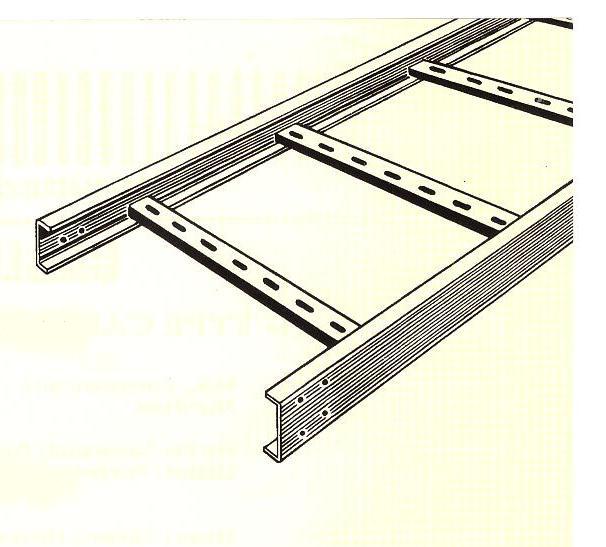

  • LADDER TYPE CABLE TRAY

    Material :- MS and Pre galvanized
    Finish :- Hot dip Galvanizing/Powder coated/Painted
    Standard Width: 100/150/200/300/450/500/600 mm
    Standard Height :- 50/75/100 mm
    Standard Thickness :- 1.8 mm/2.0mm
    Support :- Threaded Rod Dia 8/10/12 mm
    Angles : 25 x25 / 40 x 40 mm
    Flat Patti
    Cover Ht :- 25mm with 1.6 mm thickness
    ENQUIRE NOW
