Automatic Sensor Faucet
Technical Specification
1) Plating Thickness: Nickel More than 10 Micron Chromium more than 0.3 Micron.
2) Input: 6 V DC through 4 X AA size alkaline batteries / 220 V AC through 3 pin mains lead – can be operated on either mode but connected to both, will work on AC and automatically shift to DC in case of power failure.
3) Inlet/outlet: 15 mm through a control box with inbuilt solenoid valve.
4) Auto shut off feature: Auto shut off after 100 seconds of continuous sensing to eliminate water wastage in false operation.
Below are some varieties of Automatic Sensor Faucets with features and specification.
-

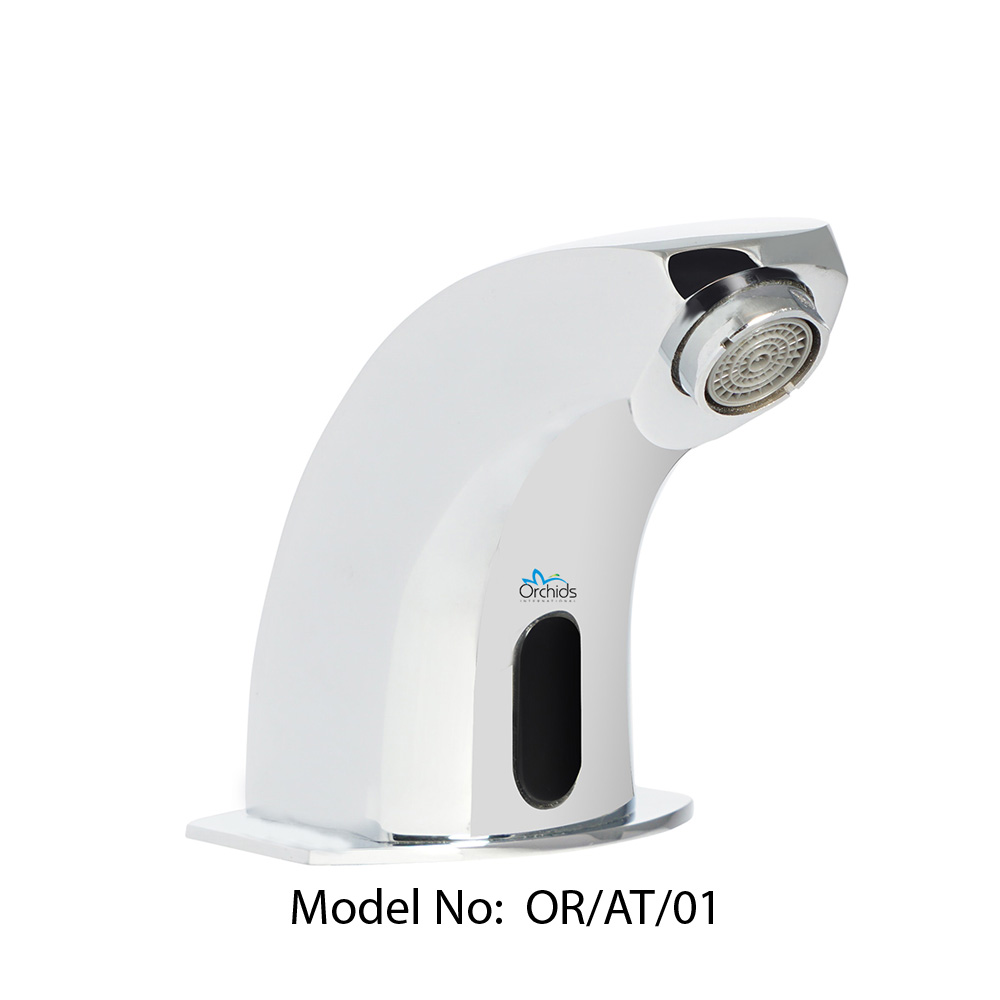

Model No. : OR/AT/01
Automatic Sensor Faucet – Pillar Mounted AC/DC
Material: Chrome plated brass
Sensing range: 150 mm adjustable
Flow rate: 20 LPM
Salt Spray Test: 48 Hours
ENQUIRE NOW -

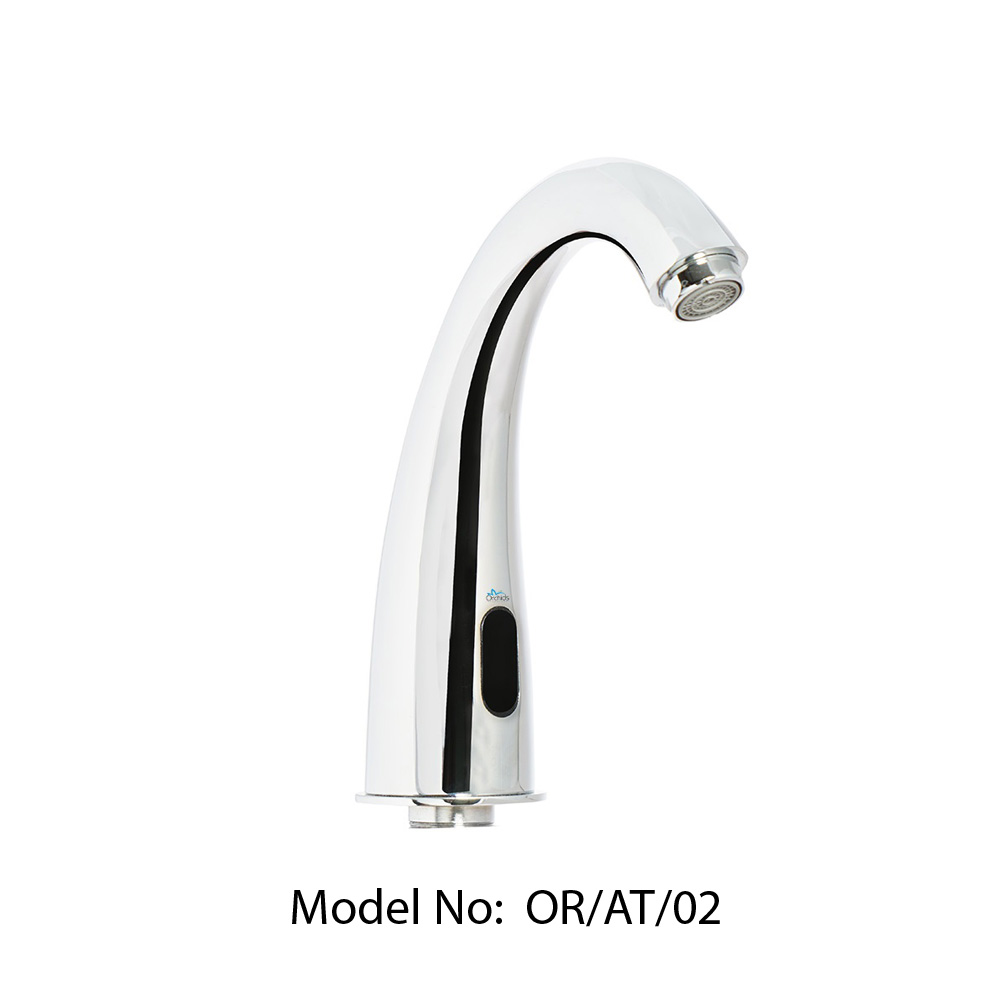

Model No. : OR/AT/02
Automatic Sensor Faucet – Pillar Mounted AC/DC
Material: Chrome plated brass
Sensing range: 150 mm adjustable
Flow rate: 20 LPM
Salt Spray Test: 48 Hours
ENQUIRE NOW -

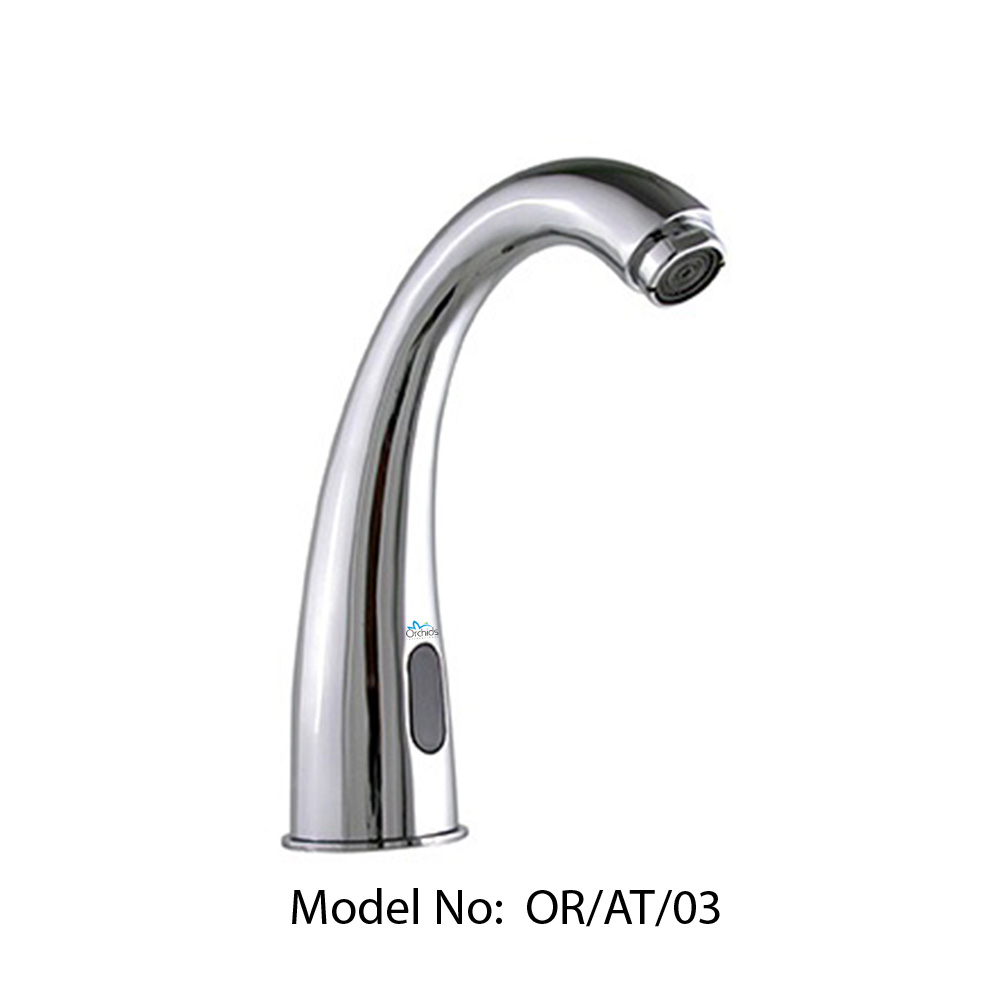

Model No. : OR/AT/03
Automatic Sensor Faucet – Pillar Mounted AC/DC
Material: Chrome plated brass
Sensing range: 150 mm adjustable.
Flow rate: 20 LPM
Salt Spray Test: 48 Hours
ENQUIRE NOW -

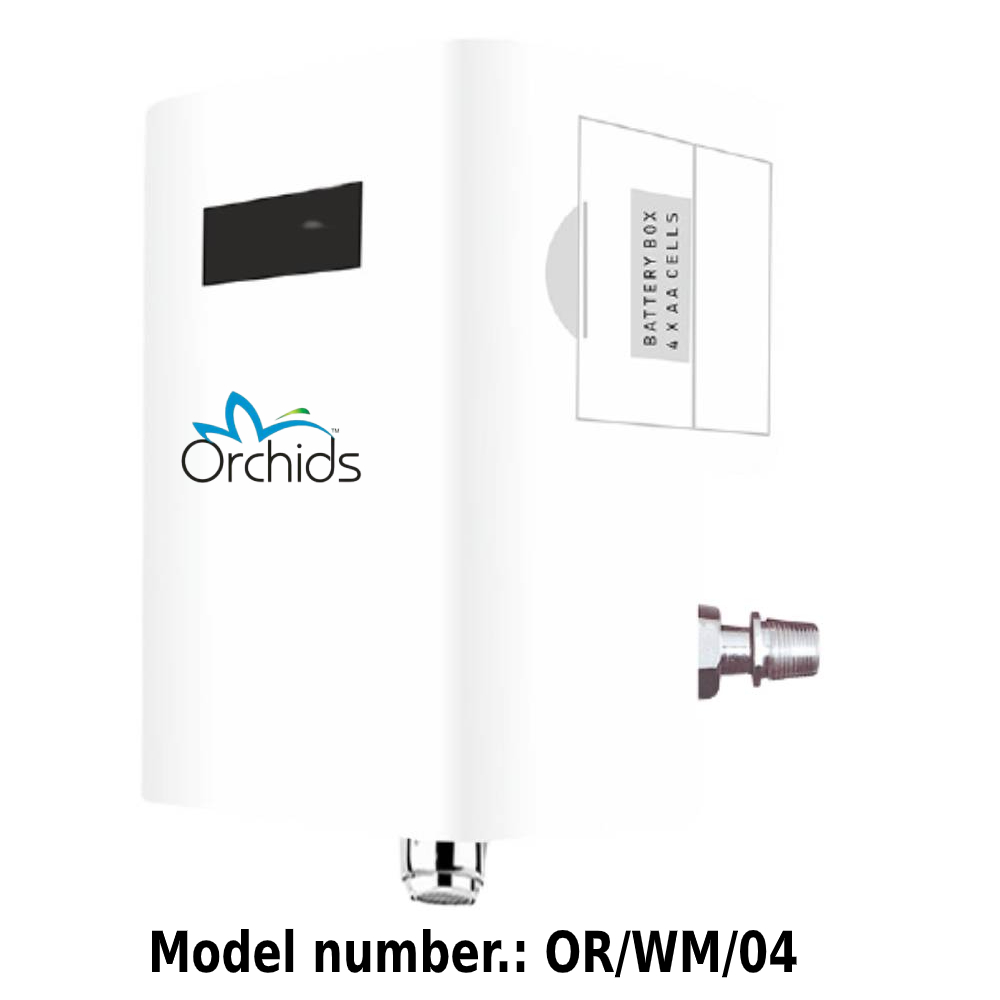

Model No. : OR/WM/04
Orchids Automatic Tap Wall Mounted ABS body (Battery Operated)
Power : 6 V DC through 4 X AA Size Alkaline Batteries
Application Area: Wash Basins and Sinks Installed for Hand Wash Purpose
Mounting: Wall-mounted
Sensor: IR Sensor placed at the bottom of the unit
Sensing Range: 150 mm Adjustable through preset pot given at the bottom of the unit
Material: ABS Plastic main body with inlet/outlets made of chrome-plated brass
Water Pressure: 0.02 Mpa – 0.8 Mpa (A minimum pressure of 0.05 Mpa is required for the decent flow of water)
USP: An easy to install portable hand wash sensor that is sleek and can be installed in any washbasin with wall mounted water pipe above it. ENQUIRE NOW -

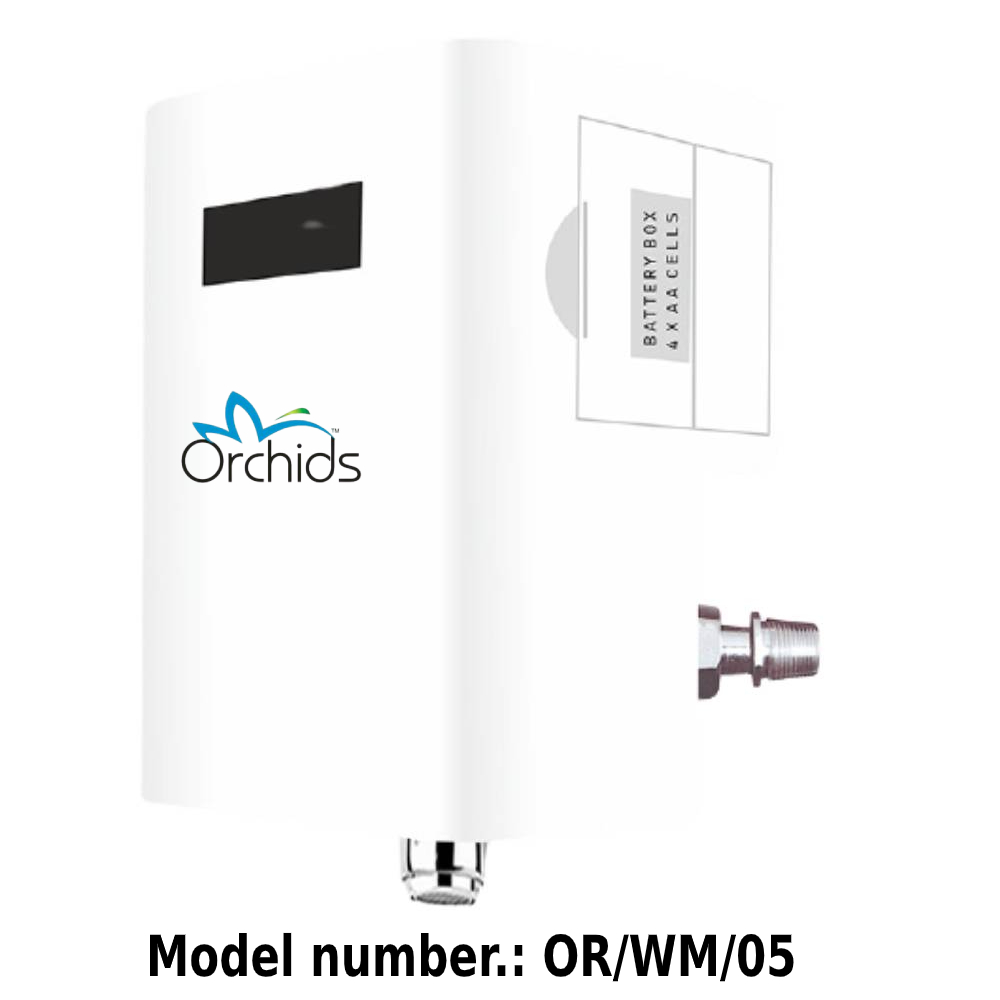

Model No. : OR/WM/05
.jpg)
Orchids Automatic Taps with Zero Pressure ABS body for water cooler. (Battery Operated)
Power : 6 V DC through 4 X AA Size Alkaline Batteries
Application Area: Wash Basins and Sinks Installed for Hand Wash Purpose
Mounting: Wall-mounted
Sensor: IR Sensor placed at the bottom of the unit
Sensing Range: 150 mm Adjustable through preset pot given at the bottom of the unit
Material: ABS Plastic main body with inlet/outlets made of chrome-plated brass
Water Pressure: 0.02 Mpa – 0.8 Mpa (A minimum pressure of 0.05 Mpa is required for the decent flow of water)
USP: An easy to install portable hand wash sensor that is sleek and can be installed in any washbasin with wall mounted water pipe above it. ENQUIRE NOWENQUIRE NOW -
Model No. : OR/WM/06
Automatic Tap Wall Mounted
Power : 6V DC 220V AC ( 220V AC / DC 6V – 4XAA Alkaline Batteries)
Application Area: Wall Mounted
Material: Chrome Plated Brass Metal Body
Sensing Range: 80mm Adjustable
Water Pressure: 0.02 MPa–0.8 Mpa (*0.05 Mpa is the minimum required pressure for a decent flow of water)
USP: Revolutionary Mouth Sensor Operated Wall Mounted Faucet
Inlet: G1/2″ (Dn15)
Setting: Sensing range adjustment pot gave at the control unit. By default, the range is preset at optimum value Alter setting only if necessary. ENQUIRE NOW -

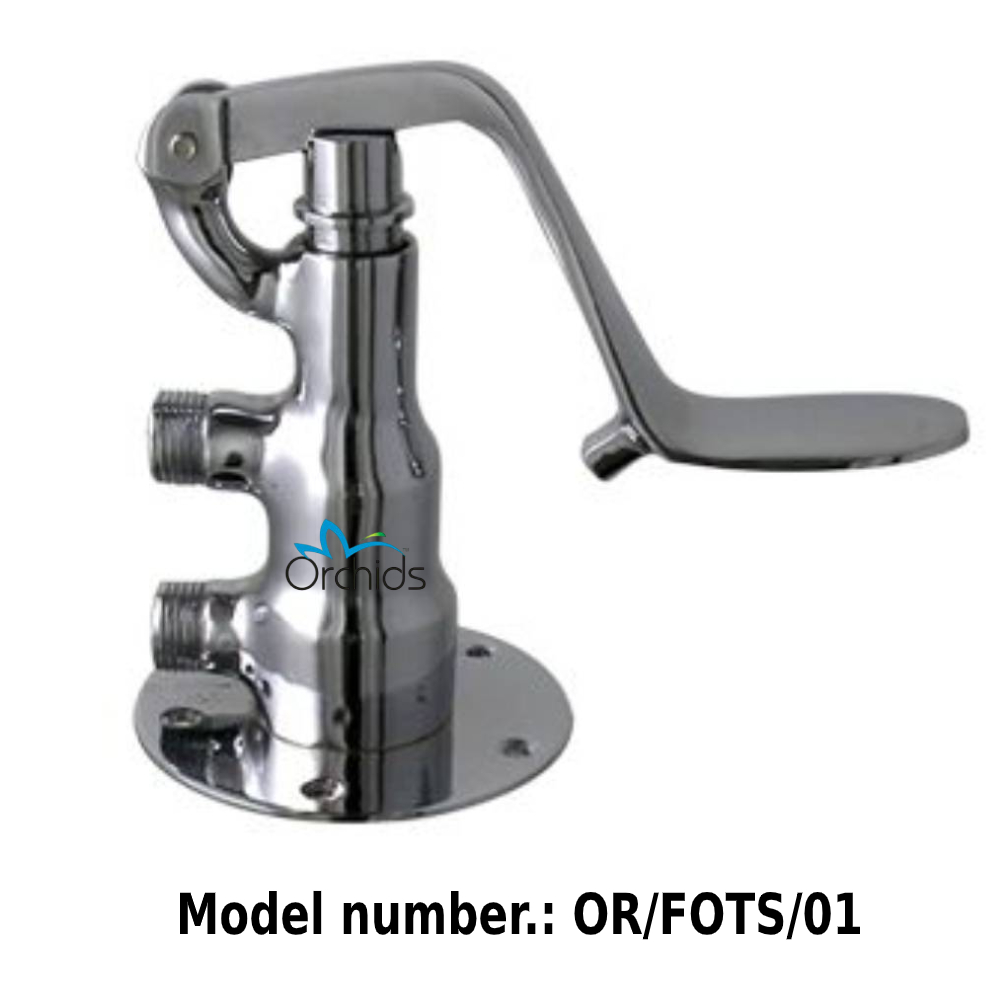

Model No. : OR/FOTS/01
Foot Operated Tap System
Material: Chrome Plated Brass Metal Body
Operation: Foot Operated Manual
Design: Heavy Duty Design for Long Life
Water flow: Accustomed ENQUIRE NOW
Technical Specification
Stylish ceramic urinal in white color with embedded sensor for automatic flushing.
Deodorize feature of 24 hours voluntarily flush if no use.
False flush protection with live indicator to represent sensing & flush ready modes.
Sense to respect feature to avoid splashing on second person in queue.
